Safe
workpiece handling
Handle and position workpieces safely and ergonomically.
Products

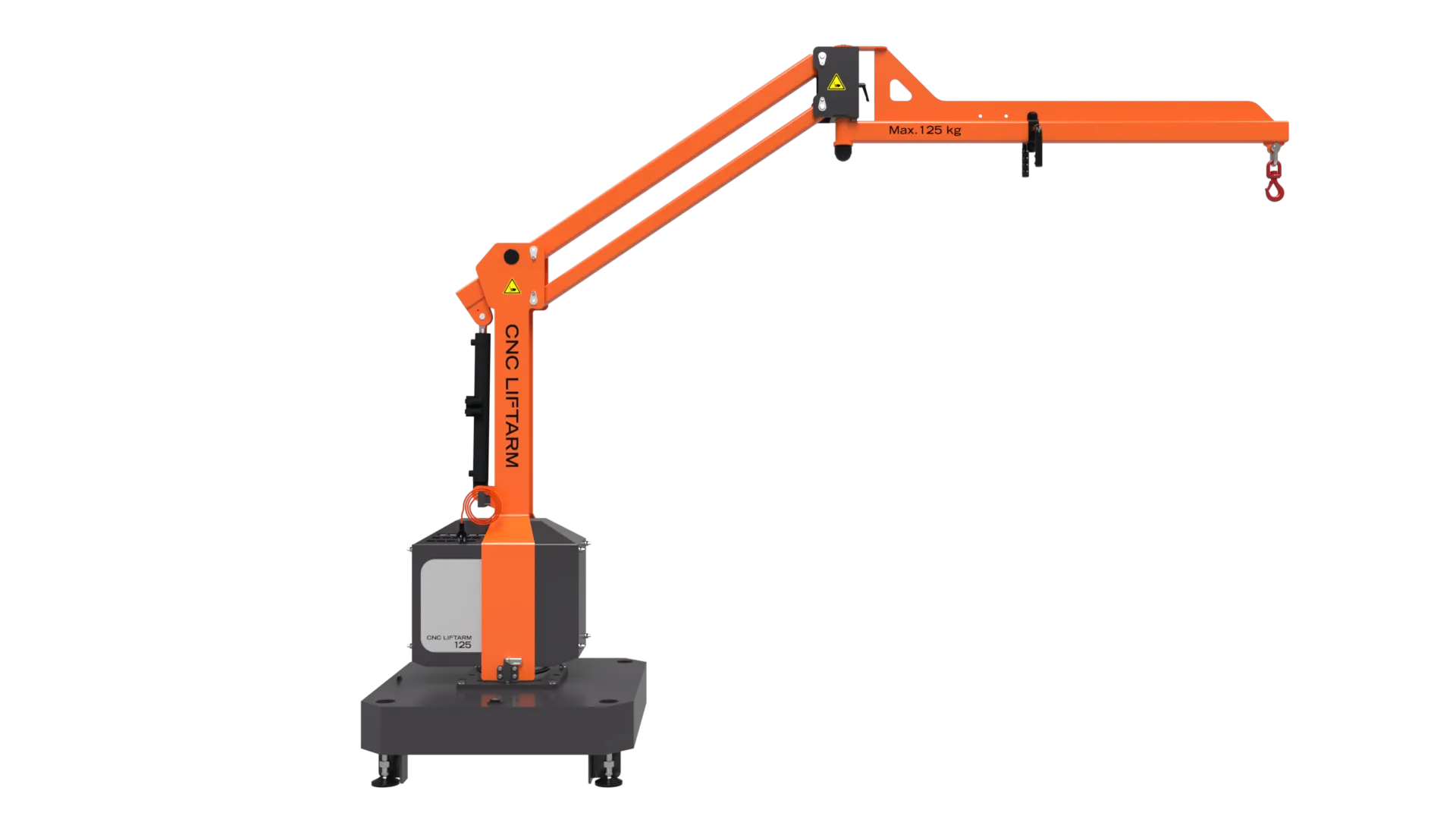

CNC LiftArm 125 L
The CNC LiftArm is developed for production environments where heavy workpieces need to be positioned safely and accurately around CNC and other machines. The 125 L adds extended reach for a larger working area.
- Maximum load of 125 kg
- 360° rotation, extended reach
- Optionally movable with a pallet truck
Increased
productivity
Position workpieces faster and more accurately than by hand or a crane.
Improved
ergonomics
Reduce physical strain and the risk of injury.
Easy to operate. Precise to position.
Front and side loading
Approach the machine from the direction that best fits the workspace.
Accurate positioning
Hydraulic system with two-speed push buttons for accurate placement of the workpiece.
Flexible manoeuvring
The hydraulically operated knuckle arm lets you manoeuvre workpieces forwards, sideways and even around obstacles.
Easy access
Reach into tight spaces and areas that are difficult to access with other lifting equipment.
Fixed to the floor or movable
The CNC LiftArm is designed for a variety of industrial environments, with different processes and space requirements. Whether you keep it in one place or move it regularly — both are possible and easy!
Fixed to the floor
Movable with pallet truck
SEE CNC LIFTARM IN ACTION
In the field
Request a quote
FAQ
Frequently asked questions
Is your question not listed?
We’re happy to help.
When should I choose the 125L?
Choose the 125L when you need the 125 kg lifting capacity with additional reach.
It can be particularly useful for deep machine enclosures or workstations where the lifting arm cannot be positioned close to the workpiece.
Does a longer reach require more floor space?
No.
The 125L provides extended reach without requiring a larger footprint.
The installation footprint is the same as that of the standard-reach model.
Can CNC LiftArm load machines with a closed roof?
Yes.
CNC LiftArm is particularly useful where an enclosed machine roof prevents loading from above.
Its front- and side-loading capability allows operators to reach into the machine without relying on overhead crane access.
Why is front or side loading useful?
Front and side loading make it possible to reach workpieces through the machine opening, even when overhead access is limited.
This is particularly useful for enclosed machines and deep workspaces.
What are the main benefits of CNC LiftArm?
CNC LiftArm makes heavy workpieces easier to handle, reduces physical strain and helps operators position components efficiently.
Its compact design, long reach and controlled hydraulic movement make it particularly useful around CNC machines.
