Multiple versions. Same principle.
Position heavy workpieces smoothly, quickly and accurately — up to 250 kg.
Every model is optionally available with a movable base plate for use with a pallet truck.
Key features
Maximum load
125 kg or 250 kg
Precise positioning
Hydraulic control with 2 speeds for controlled placement.
360° rotation
Flexible positioning, even in tight workspaces.
Robust industrial construction
Built for intensive daily use.
Flexible manoeuvring
The hydraulically operated knuckle arm lets you manoeuvre workpieces forwards, sideways and even around obstacles.
Easy to move
Reposition in minutes between machines and workspaces using a pallet truck.
Products overview
For different loads and reach

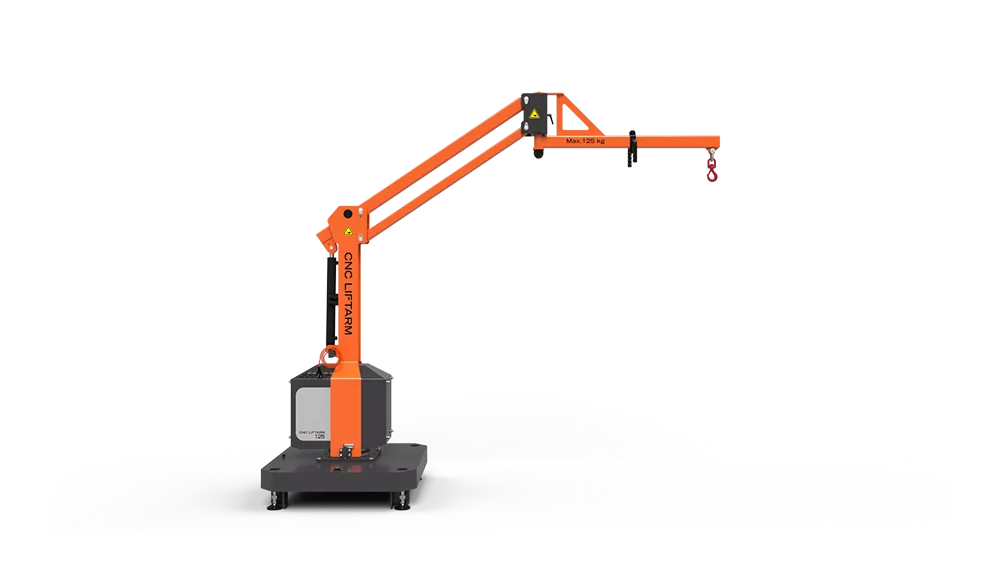

CNC LiftArm 125
Max. 125 kg
For workpieces up to 125 kg. Compact and versatile for everyday lifting and positioning.
Model CNC LiftArm 125 Maximum load 125 kg Rotation 360° Reach Standard Drive Hydraulic Movable with a pallet truck Optional Power supply 320V, 16A

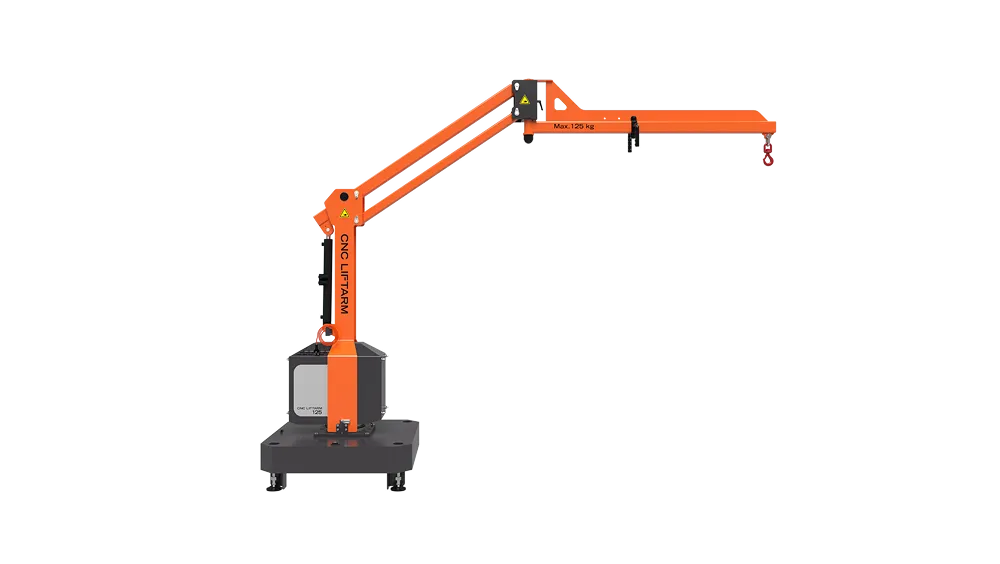

CNC LiftArm 125 L
Max. 125 kg, extended reach
For workpieces up to 125 kg, with extended reach for a larger working area.
Model CNC LiftArm 125 L Maximum load 125 kg Rotation 360° Reach Extended Drive Hydraulic Movable with a pallet truck Optional Power supply 320V, 16A

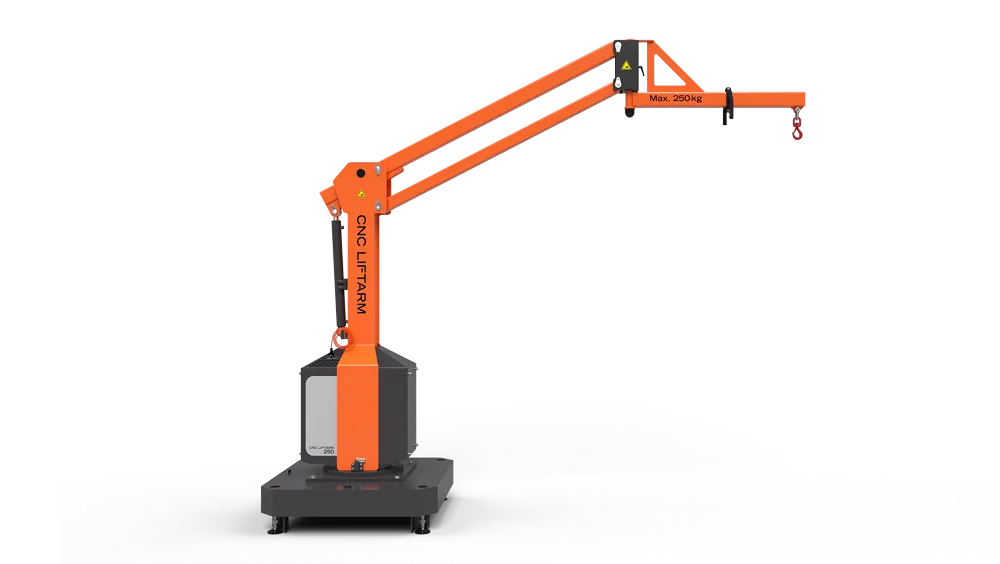

Model CNC LiftArm 250 Maximum load 250 kg Rotation 360° Reach Standard Drive Hydraulic Movable with a pallet truck Optional Power supply 320V, 16A
Fixed to the floor or movable
The CNC LiftArm is designed for a variety of industrial environments, with different processes and space requirements. Whether you keep it in one place or move it regularly — both are possible and easy!
Movable with pallet truck
SEE CNC LIFTARM IN ACTION

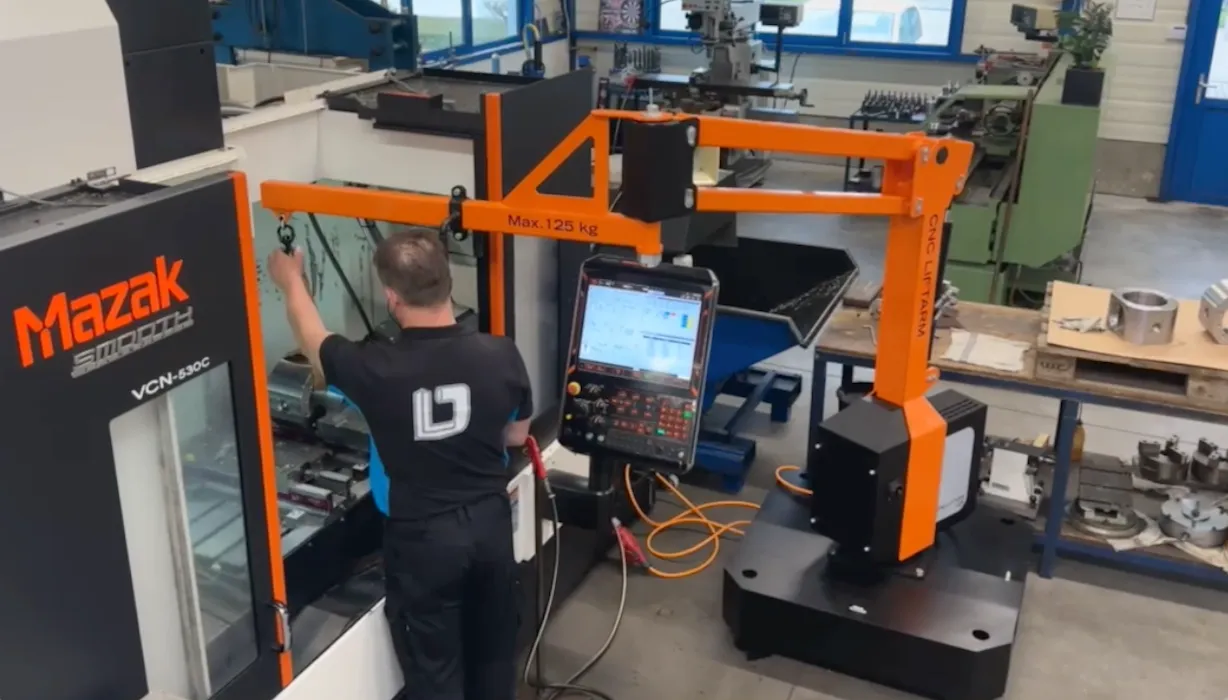

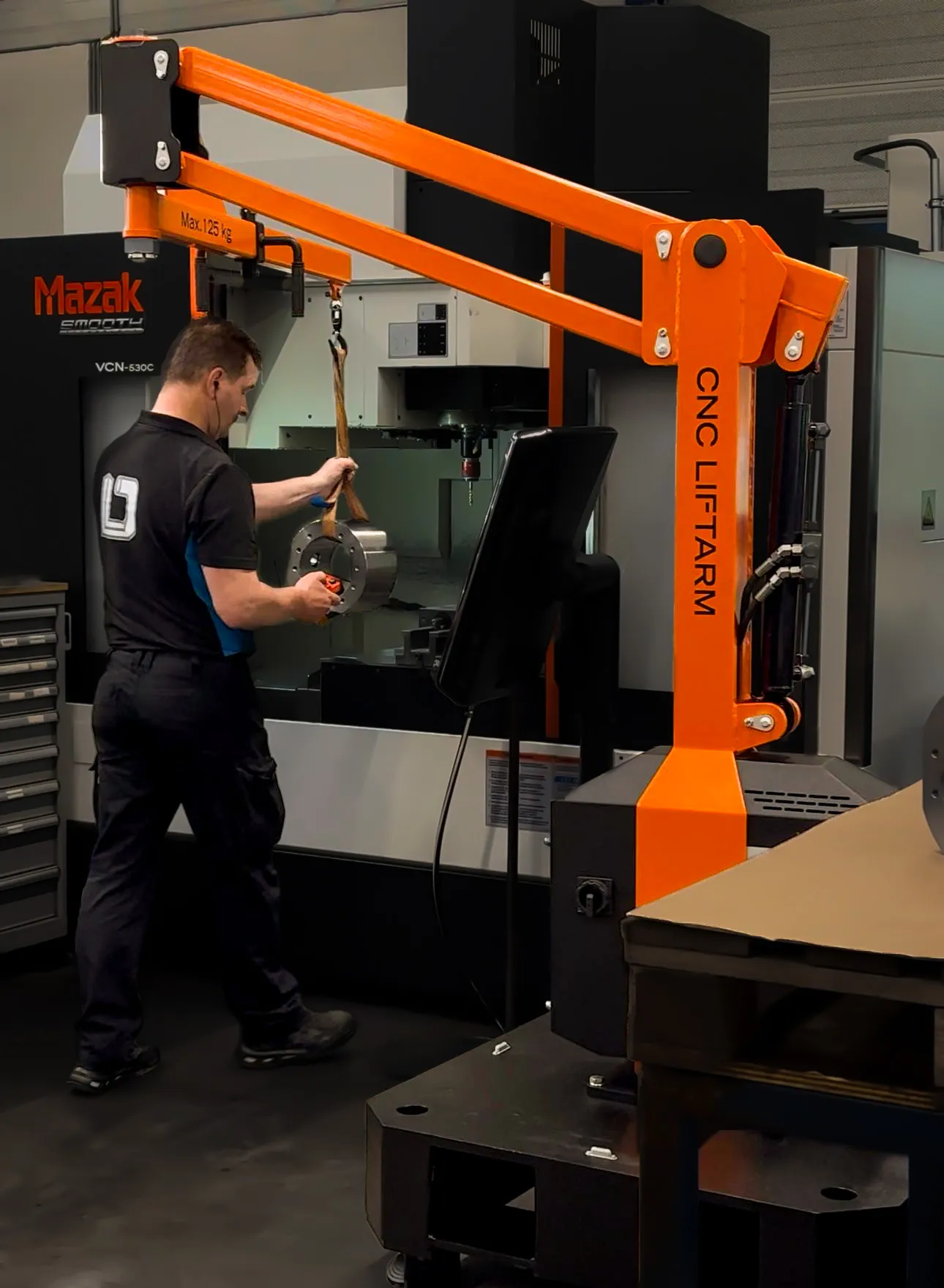

In the field
Increase the productivity of your workshop
We’ll recommend the right solution and provide pricing within one business day.
FAQ
Frequently asked questions
Is your question not listed?
We’re happy to help.
How do I choose the right CNC LiftArm?
The main factors are workpiece weight, required reach and how you intend to use the lifting arm.
You can compare the models yourself, or tell us your machine and application and we’ll be happy to help you choose.
When should I choose the 125L?
Choose the 125L when you need the 125 kg lifting capacity with additional reach.
It can be particularly useful for deep machine enclosures or workstations where the lifting arm cannot be positioned close to the workpiece.
Does a longer reach require more floor space?
No.
The 125L provides extended reach without requiring a larger footprint.
The installation footprint is the same as that of the standard-reach model.
Why choose CNC LiftArm instead of a jib crane?
A jib crane is a useful lifting solution for a fixed working area.
CNC LiftArm is developed specifically for controlled workpiece positioning around CNC machines, with a compact design and reach suited to accessing machine enclosures.
